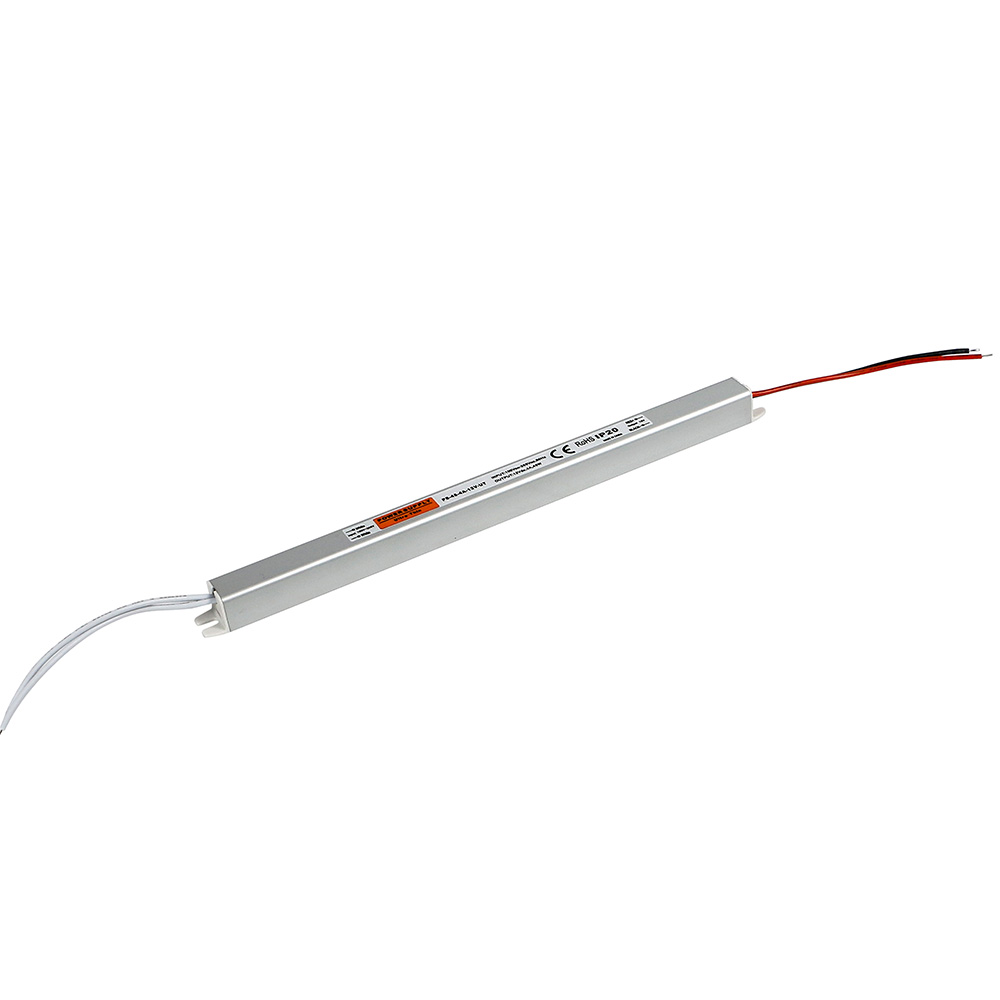

slim strip light box power supply

12V & 24V options available to slim strip light box power supply. Linear Lighting Power Supply 12V & 24V with an input voltage of 170~240VAC to supply lighting based on 12V & 24V LED technology. The maximum power capacity of slim strip light box transformer is 72W.

Thickness of the linear light box built-in long transformer is only 18mm, working sound is less than 15 db. It is suitable for fabric light box, led smart mirror, linear Light box, etc.

Available Outputs:

• 18W, 24W, 36W, 48W, 60W, 72W

12V & 24V slim strip light box power supply Features

12V & 24V options available to slim strip light box power supply

High-strength lightweight aluminum shell

Easy installation with reserved mounting holes

High density double-sided fiberglass PCB with SMT process

Thickness within 18mm

Smaller size with bigger power ( 18W to 72W )

Superior heat dissipation with fanless silent design

Short circuit, overload, overvoltage, overcurrent and leakage protection

CE & RoHS & FCC listed

ODM & OEM supported

Fast delivery

12V & 24V slim strip light box power supply Specifications

AC input voltage range: 85-264VAC Selected by Switch

Input frequency: 47-63Hz

Output voltage: 12V & 24VDC±1%

Inrush current: cold start, 20A/115V, 40A/230V

Input leakage current: <0.7mA / 230V

Line regulation (Full Load): <± 0.5%

Output overload protection: 110-130% Constant Current, Auto Recovery

Output over voltage protection: 115-150%

Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min

Rise time: 50ms@full load (typical)

Hold up time: 20ms@full load (typical)

Operating temp.& humidity: -10°C to 50°C (14°F - 122°F), 20%-93%RH (non-condensing)

Storage temp.& humidity: -20°C to 85°C (-4°F - 185°F), 20%-93%RH (non-condensing)

MTBF: 100,000 hours

For more information, please contact us.
