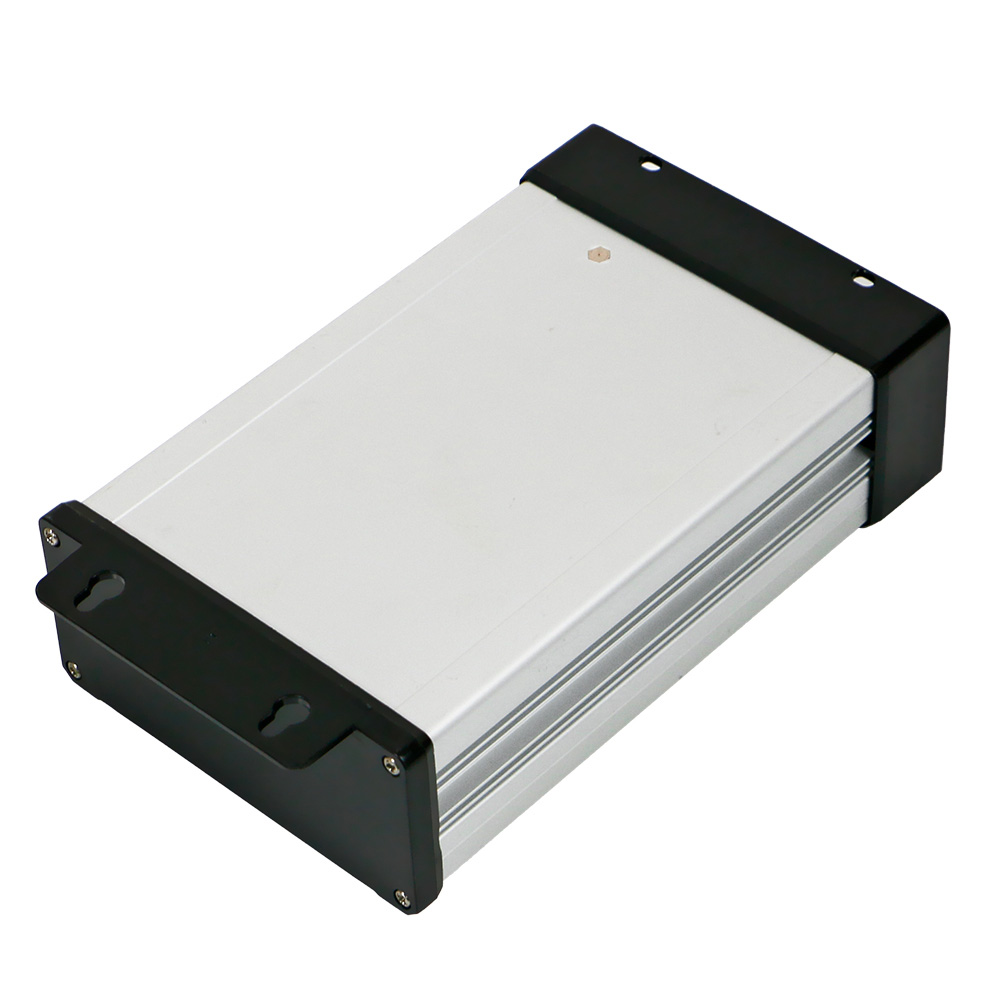

rainproof led power supply 5V

5V rainproof led power supply is converted from ac 110V / 220V input to dc 5v output.

5V rainproof led power supply contains 100W, 150W, 200W, 300W, etc. Other specifications can be customized.

SHAMPOWER rainproof led power supply has passed CE, RoHS, BIS and FCC certification.

5VDC rainproof power supply is suitable for luminous characters, blister characters, display, etc.

Available Outputs:

• 100W, 150W, 200W, 300W,

5V rainproof led power supply Features:

Available in wattage 10W to 300W

Available in silver & gold finishes

Sturdy aluminum construction

IP65 waterproof performance

High density double side PCB with SMT process

More dust-proof, moisture proof, salt proof of three anti-paint soaked PCB

Superior heat dissipation with built-in fan

BIS & CE & RoHS & FCC listed

ODM & OEM supported and Fast delivery

5V rainproof led power supply Specifications：

AC input voltage range: 85-132V / 170-264VAC Selected by Switch

Input frequency: 47-63Hz

Output voltage: 5VDC±1%

Inrush current: cold start, 20A/115V, 40A/230V

Input leakage current: <0.7mA / 230V

Line regulation (Full Load): <± 0.5%

Output overload protection: 110-130% Constant Current, Auto Recovery

Output over voltage protection: 115-150%

Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min

Rise time: 50ms@full load (typical)

Hold up time: 20ms@full load (typical)

Operating temp.& humidity: -10°C to 50°C (14°F - 122°F), 20%-93%RH (non-condensing)

Storage temp.& humidity: -20°C to 85°C (-4°F - 185°F), 20%-93%RH (non-condensing)

MTBF: 100,000 hours

For more information, please contact us.
