V6A GPS Location Terminal Built-in 1500mAh Battery For Cars

V6A GPS Location Terminal Built-in 1500mAh Battery For Cars Introduction:

1. SIM card installation method

    The device is using a standard SIM card. The card slot is a self-bouncing card slot, the chip is placed face down, and the card notch is inserted into the card slot.

2. Indicator light description

2.1 Red light - charging indicator

2.2 Yellow light-GSM indicator light

2.3 Blue light-GPS indicator

3. Working logic

3.1 Normal mode:

The working state transmits the location by default every 30 seconds and enters the standby state after 3 minutes of inactivity. In standby mode, the device transmits a heartbeat every 5 minutes to keep the server connected, and the device can be woken up to work by vibrating.

3.2 Power-saving mode: The working state transmits the location by default every 30 seconds and enters the dormant state after 3 minutes of inactivity, and the device in the dormant state does not transfer data, disconnect the server to save power and vibrate the device to wake it up to the working state.

3.3 Smart mode: Set the data upload interval, the device works according to the set interval, and the device is in a sleep state during non-working hours. Vibration does not wake up.

3.4 The above default state description:

1) Working status: The working light of the device is on, and both GPRS and GPS are in working status.

2) Standby state: The device transmits a heartbeat, GPRS works (heartbeat data upload), but GPS does not work.

3) Dormant state: The device is in a dormant state, and GPRS and GPS do not work.

V6A GPS Location Terminal Built-in 1500mAh Battery For Cars Features:

1. STM's advanced 32-bit high-performance MCU processor is adopted;

2. Support multiple functions such as remote pickup, vibration alarm, overspeed alarm, and removal alarm;

3. Support the electronic fence function. The user delimits a virtual electronic fence through the platform/APP. When equipment enters or exits the fence, it can be recognized by the platform and send an alarm;

4. When an alarm occurs, it is possible to send an alarm short message/phone to the monitoring number, and the alarm is uploaded to the platform at the same time;

5. The terminal adopts a well-known manufacturer's industrial grade high stability LTE module with a built-in LTE high sensitivity antenna, supports TCP/IP data transmission, and supports domain name/IP address connected to the server;

6. Built-in mass storage chip, supporting offline data storage and supplementary transmission of blind area data; When the vehicle is in a place with weak wireless signals or severe interference, the vehicle may temporarily store the vehicle operation data in FLASH, and when the wireless signal returns to normal, it can supplement these data to achieve data omission.;

7. Built-in 3-axis acceleration sensor, integrated with accurate acceleration algorithm, real-time acquisition of vehicle status judgments such as the current posture of the vehicle;

8. High sensitivity GPS/BDS dual star locating module, anti-interference ceramic antenna, achieving more stable satellite search signal, supporting AGPS fast locating and tracking, synchronous time service;

9. Support online remote upgrade and remote configuration of product parameters.

10. Three working modes, which can adapt to various scenarios and applications

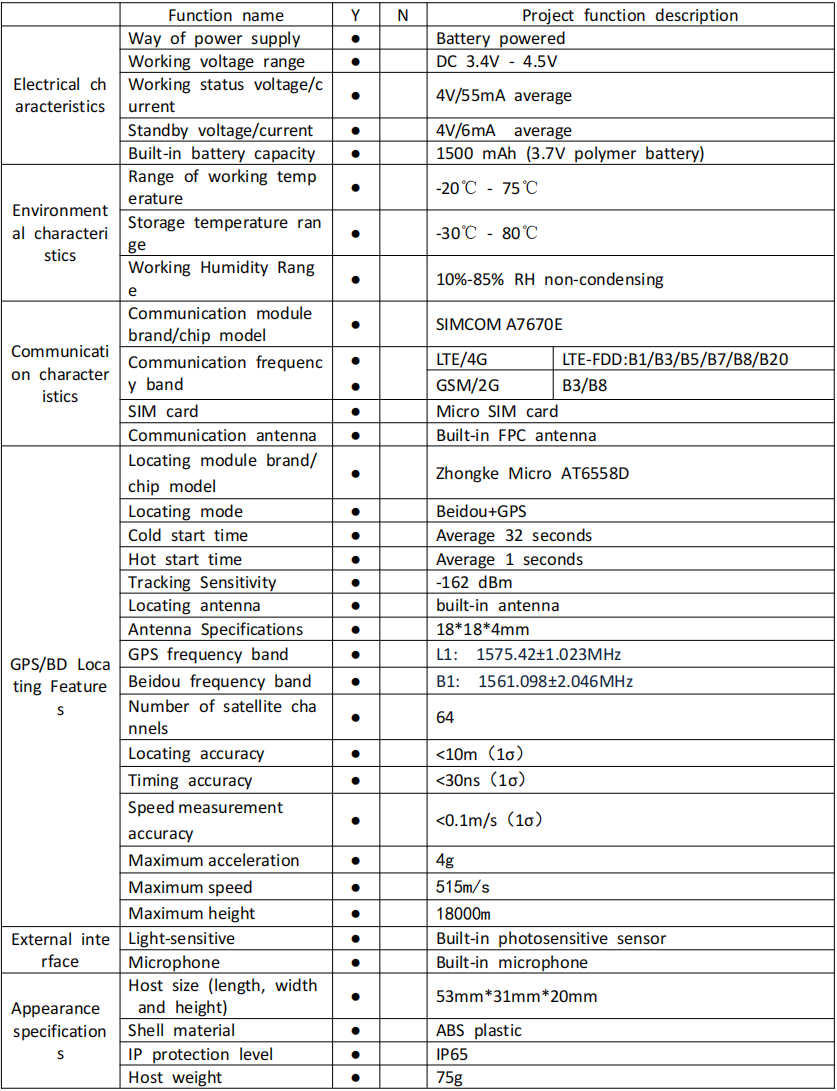

V6A GPS Location Terminal Built-in 1500mAh Battery For Cars Parameters:

V6A GPS Location Terminal Built-in 1500mAh Battery For Cars Applications:

1) Insurance industry

2) Corporate fleet industry

3) Automobile manufacturers/4S stores

4) Individual users

5) Electric new energy fields

6) Passenger vehicles

7) Taxis

8) Rental vehicles
