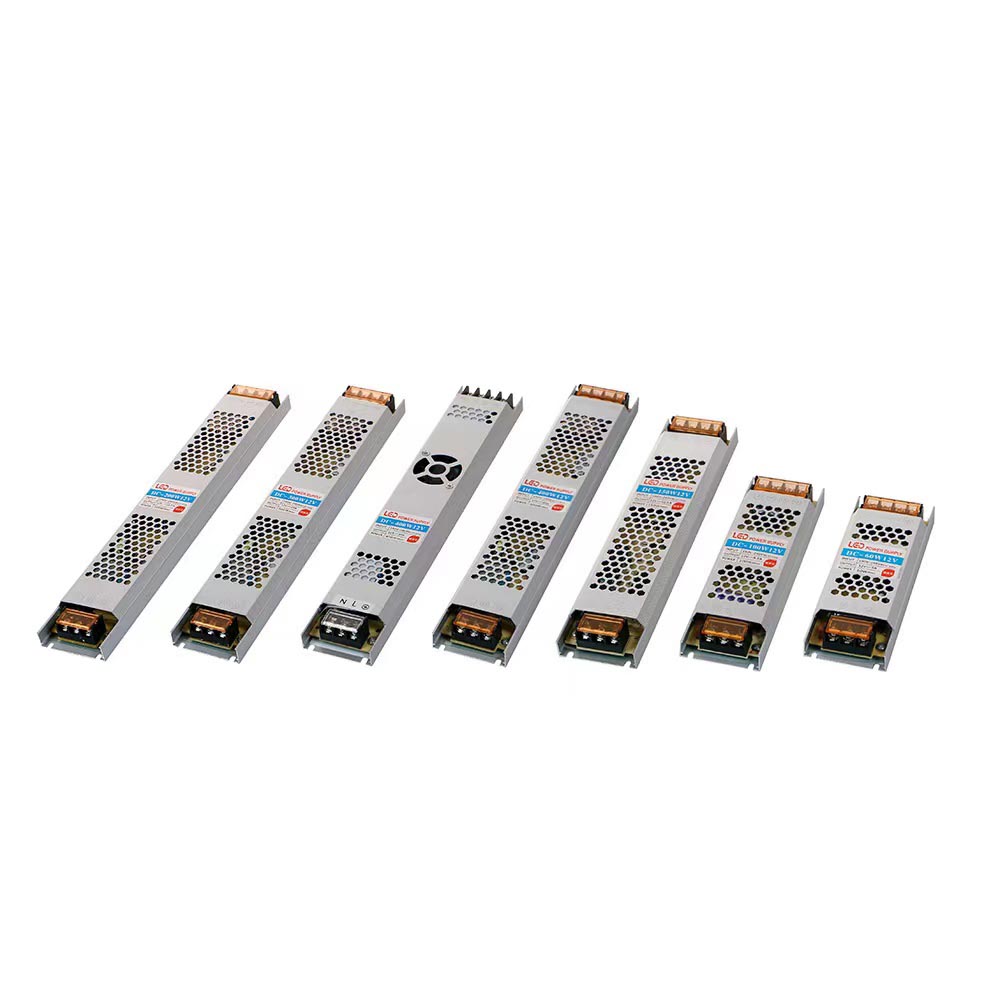

12v Ultra thin led power supply

12v ultra thin led power supply with an input voltage of 170~240VAC to supply lighting based on 12VDC LED technology. The maximum current capacity of the power supply is 41A.

The 12V ultra thin led power supply can be easily connected to LED strips through the front screw terminals or led lights, LED advertising light box, fabric light box, etc. The ultra thin led driver has 1 output.

Used in conjunction with a voltage regulator, 12v ultra thin led transformer allows you to change the light intensity of the strip.

Available Outputs:

• 60W, 100W, 120W, 150W, 200W, 250W, 300W, 360W, 400W, 500W

12v ultra thin led power supply Features

Driver for all types of strip lights, led lighting, led display, etc.

Industrial specifications and standards

With short circuit, overload, overvoltage, overcurrent and leakage protection

Built in EMI filter

85% high efficiency and low temperature

24 hours 100% full load burn-in test

CE & RoHS & FCC listed

12v ultra thin led power supply Specifications

AC input voltage range: 85-132V / 170-264VAC Selected by Switch

Input frequency: 47-63Hz

Output voltage: 12VDC±1%

Inrush current: cold start, 20A/115V, 40A/230V

Input leakage current: <0.7mA / 230V

Line regulation (Full Load): <± 0.5%

Output overload protection: 110-130% Constant Current, Auto Recovery

Output over voltage protection: 115-150%

Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min

Rise time: 50ms@full load (typical)

Hold up time: 20ms@full load (typical)

Operating temp.& humidity: -10°C to 50°C (14°F - 122°F), 20%-93%RH (non-condensing)

Storage temp.& humidity: -20°C to 85°C (-4°F - 185°F), 20%-93%RH (non-condensing)

MTBF: 100,000 hours

For more information, please contact us.
