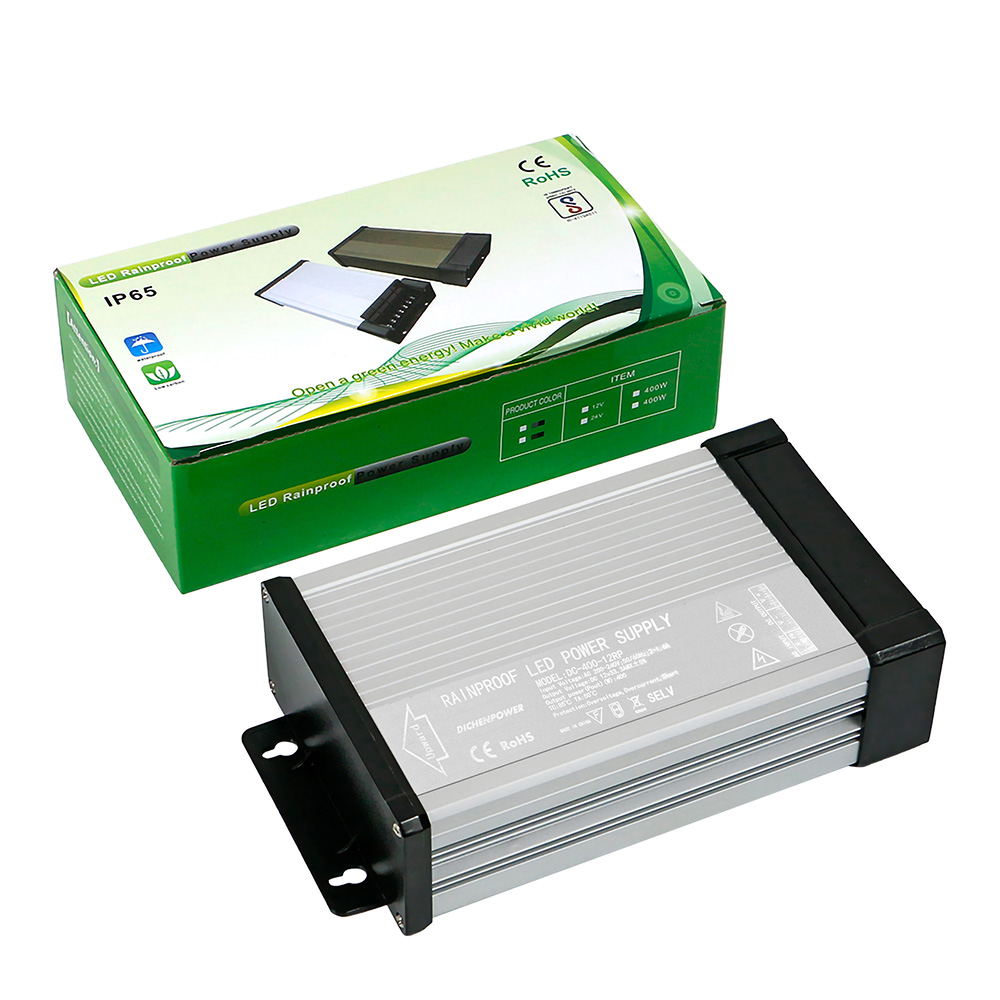

rainproof led power supply 24V

24V rainproof led power supply is converted from ac 110V / 220V input to dc 24v output.

24V rainproof power supply contains 60W, 100W, 150W, 200W, 250W, 300W, 360W, 400W, 500W, 600W, 700W, etc. Other specifications can be customized.

SHAMPOWER rainproof led power supply has passed CE, RoHS, BIS and FCC certification.

It is suitable for LED luminous characters, advertising light boxes, outdoor billboard, etc.

Available Outputs:

• 60W, 100W, 150W, 200W, 250W, 300W, 360W, 400W, 500W, 600W, 700W

24V rainproof led power supply Features:

Available in wattage 60W to 700W

Available in silver & gold finishes

Sturdy aluminum construction

IP65 waterproof performance

High density double side PCB with SMT process

More dust-proof, moisture proof, salt proof of three anti-paint soaked PCB

Superior heat dissipation with built-in fan

BIS & CE & RoHS & FCC listed

ODM & OEM supported and Fast delivery

24V rainproof led power supply Specifications：

AC input voltage range: 85-132V / 170-264VAC Selected by Switch

Input frequency: 47-63Hz

Output voltage: 24VDC±1%

Inrush current: cold start, 20A/115V, 40A/230V

Input leakage current: <0.7mA / 230V

Line regulation (Full Load): <± 0.5%

Output overload protection: 110-130% Constant Current, Auto Recovery

Output over voltage protection: 115-150%

Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min

Rise time: 50ms@full load (typical)

Hold up time: 20ms@full load (typical)

Operating temp.& humidity: -10°C to 50°C (14°F - 122°F), 20%-93%RH (non-condensing)

Storage temp.& humidity: -20°C to 85°C (-4°F - 185°F), 20%-93%RH (non-condensing)

MTBF: 100,000 hours

For more information, please contact us.
