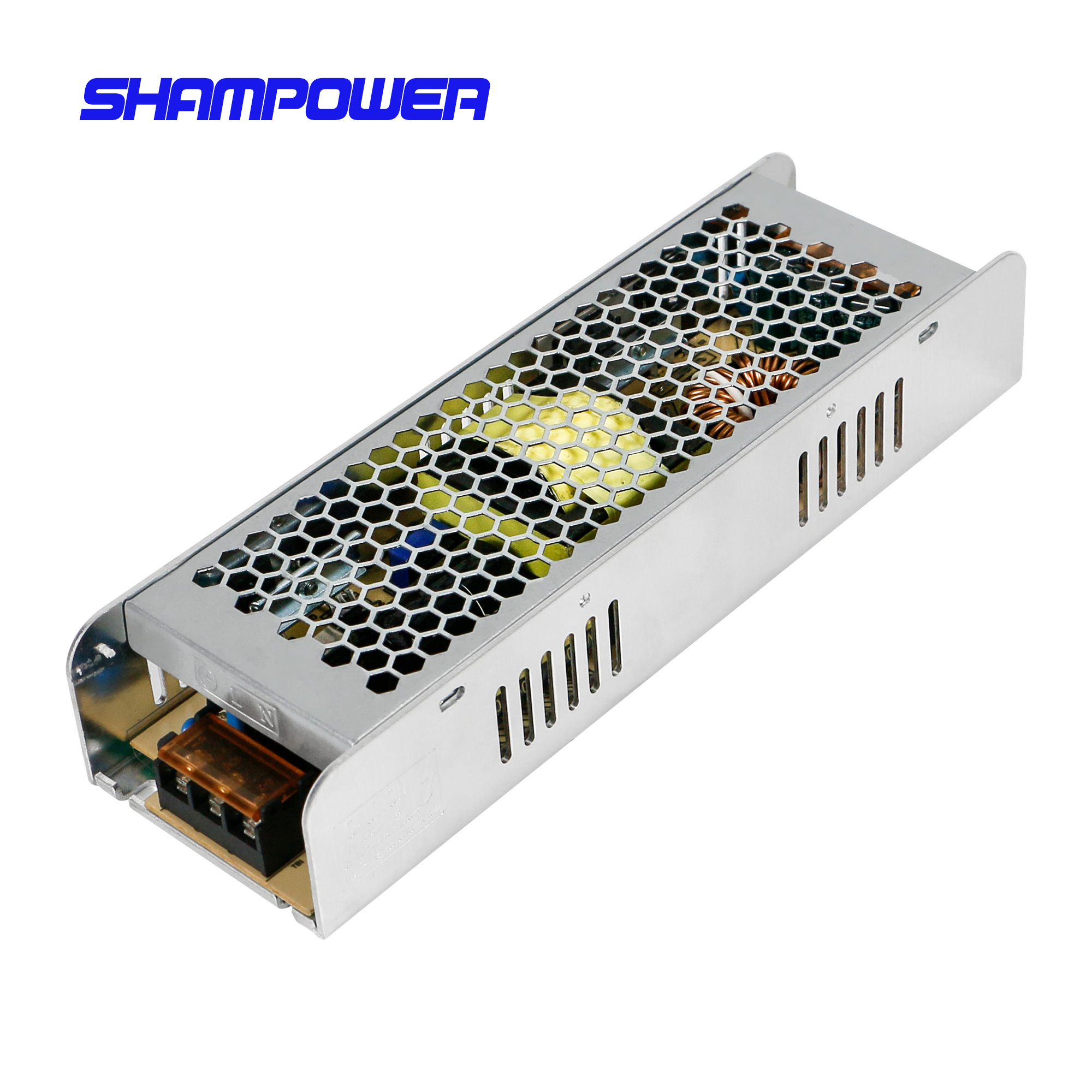

24V Strip Series LED Power Supply

DC 24V strip series LED power supply with an input voltage of 170~240VAC to supply lighting based on 24VDC LED technology. The maximum current capacity of the power supply is 16.7A.

The strip LED power supply can be easily connected to LED strips through the front screw terminals or used to power other electronic devices. The strip LED power supply has 1 output.

Used in conjunction with a voltage regulator, a strip LED power supply allows you to change the light intensity of the strip.

Available Outputs:

• 60W, 100W, 120W, 150W, 200W, 250W, 360W

24V Strip LED Power Supply Features:

1) Driver for all types of strip lights, led lighting, led display, etc.

2) Industrial specifications and standards

3) With short circuits, overload, overvoltage, overcurrent, and leakage protection

4) Built-in EMI Filter

5) 85% high efficiency and low temperature

6) 24-hour 100% full load burn-in test

7) CE & RoHS & FCC & ISO9001 listed

24V Strip LED Power Supply Specifications

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: CE, RoHS, FCC, ISO9001, CCC

24V Strip LED Power Supply Applications:

1) Industrial automation machinery

2) Industrial control system

3) Mechanical and electrical equipment

4) Electronic instruments, equipment, or apparatus

5) Household appliances

6) LED display application
