Pure Sine Wave Inverter

POWER SUPPLY > Inverter > Pure Sine Wave Inverter

Pure Sine Wave Inverter

The Pure Sine Series Wave Inverter is a highly reliable off-grid pure sine wave DC-AC power inverter, which can transfer DC power from battery to AC power.

The key features of the Pure Sine Wave Inverter include digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high-quality fan with low noise, adjustable AC output voltage, and frequency, -25~ + 70°C wide operating temperature range, complete protection features, and etc.

Combined with battery, the Pure Sine Series Wave Inverter is suitable for use in residential, commercial, marine, automobile, mine, construction sites, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tools, communication equipment, power distribution cabinet, outdoor camping equipment, marine-AC power, factory equipment and etc.

Available Outputs:

• 300W, 600W, 1000W, 1500W, 2000W, 3000W, 4000W, 5000W

Pure Sine Wave Inverter Features：

1) Pure sine wave output ( THD<3% )

2) 12V or 24V DC input

3) Power ON-OFF Switch

4) Input voltage range: -15% ~ +25%

5) Output voltage regulation: ±10%

6) Protections: Output short / Input polarity reverse / Overload / Over Voltage / Over temp

7) -25~ + 70°C wide operating temperature

8) Temperature-controlled Cooling fan

9) Front panel indicator for operation status

10) No load dissipation <1.7W at standby saving mode

11) CE & RoHS & FCC & ISO9001 listed

12) LED/LCD display & Remote control is optional

13) Two years warranty

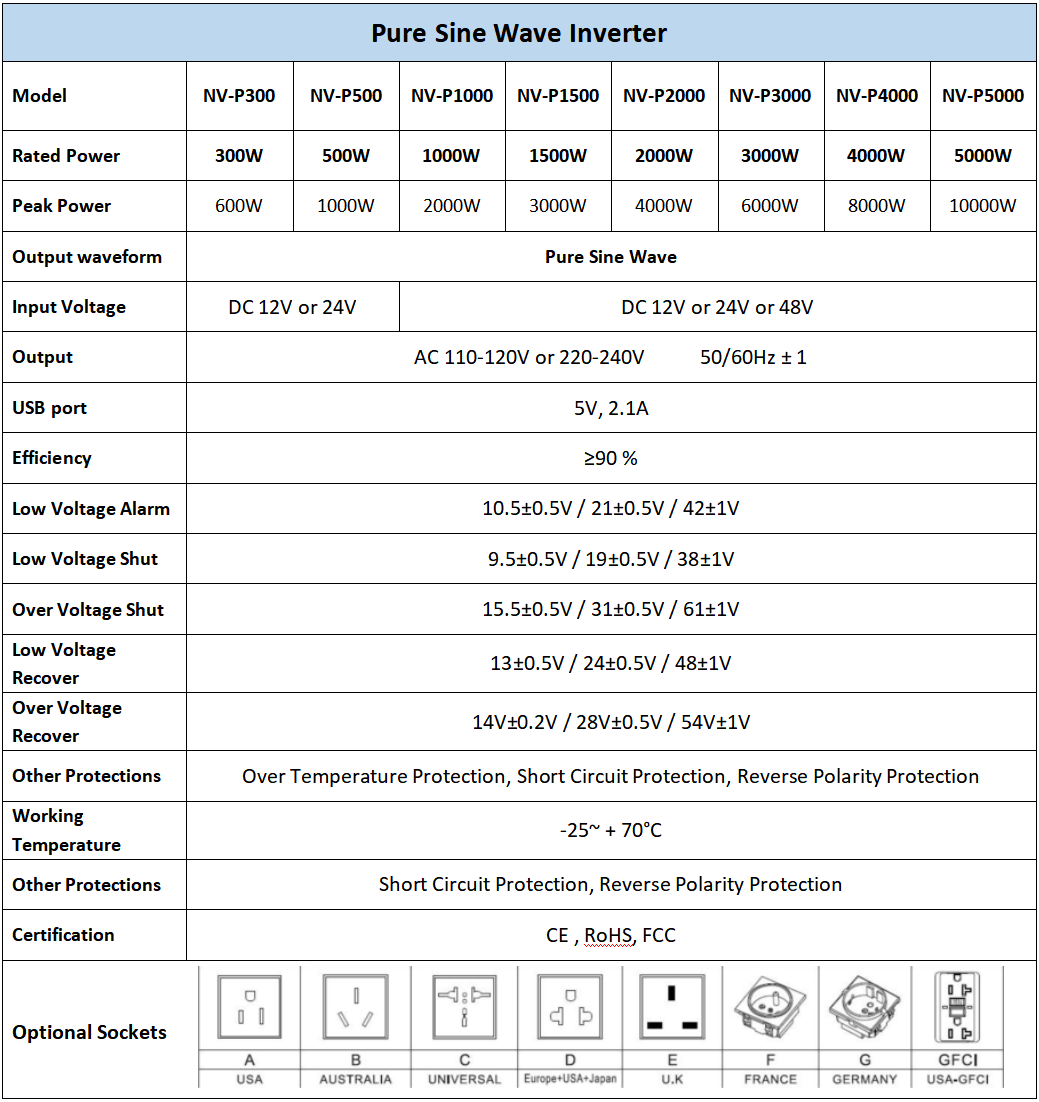

Pure Sine Wave Inverter Specifications

Pure Sine Wave Inverter Applications:

1) Mobile devices

2) Portable equipment

3) Home and office application

4) Vehicle

5) Yacht

6) Telecom or Datacom system

7) Off-grid solar power system

8) Outdoor camping equipment
