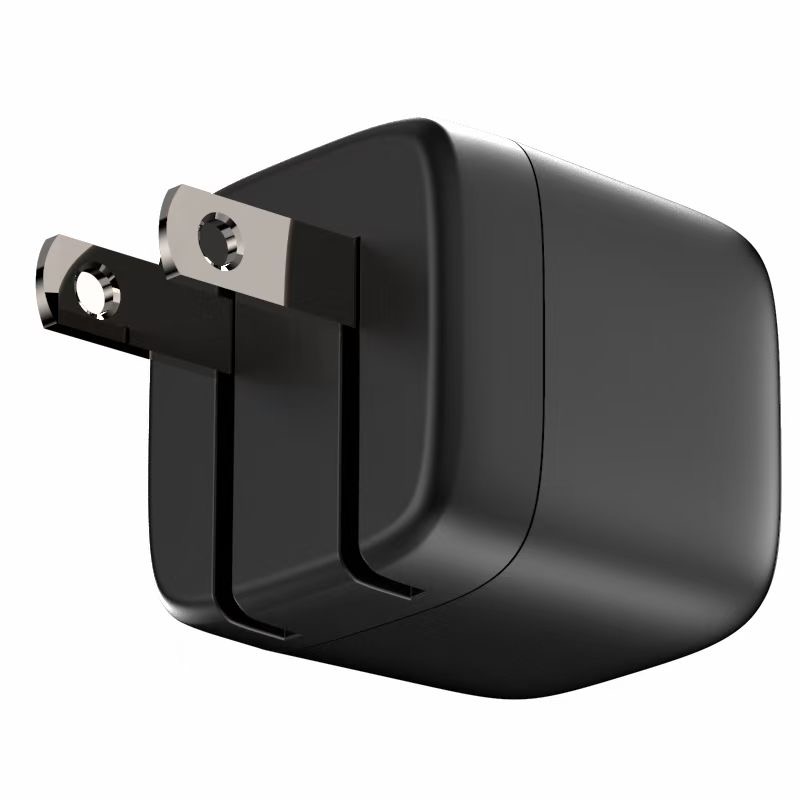

PD Charger Series

The PD charger Series adopts the input range from 85VAC to 264VAC. An efficiency of up to 90% and an extremely low no-load power consumption below 0.15W allows the PD charger Series to save energy when it is either in the operating mode or the standby mode.

The entire PD charger Series utilizes the 94V-0 flame-retardant plastic case, providing double insulation that effectively prevents electrical shock.

The PD charger Series equipped with an EU/US/UK/AU/JP/KR jack plug is suitable for laptops, tablets, mobile phones, charging treasures, and other products.

Built-in PWM chip allows the PD charger Series to meet the simultaneous charging needs of multiple devices so that your devices can be fully charged quickly.

Available Outputs Power: 30W / 35W / 45W / 65W / 100W / 188W

The PD Charger Series Features:

1) 110-220VAC wide voltage input

2) EU / US / UK / AU / JPN / Kr plugs are available

3) Support QC / PD / PPS and other fast-charging protocols

4) Overvoltage, overcurrent, overload, overtemperature, overcharge, short circuit, leakage, electrostatic protection

5) Intelligent power-off protection

6) High efficiency and low consumption (standby <1W)

7) Multiple devices can be charged at the same time

8) Compatible with laptops, tablets, mobile phones, smart watches, Bluetooth headsets, drones, game consoles, etc

9) Foldable pin design saves space and is easy to carry

10) The shell's max temperature is lower than 60°C while charging

11) 100% full load burn-in test

12) UL / CE / KC / CCC / RoHS / FCC / ISO9001 are listed

13）3 years warranty

14) ODM & OEM supported and Fast delivery

The PD Charger Series Specifications：

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: UL, CE, KC, RoHS, FCC, ISO9001, CCC

The PD Charger Series Applications:

1) Laptops

2) Tablets

3) Mobile phones

4) Smart watches

5) Bluetooth headsets

6) Drones

7) Game consoles
