Magnetic Power Supply

    • 1
    • 2
    • 3
    • 4

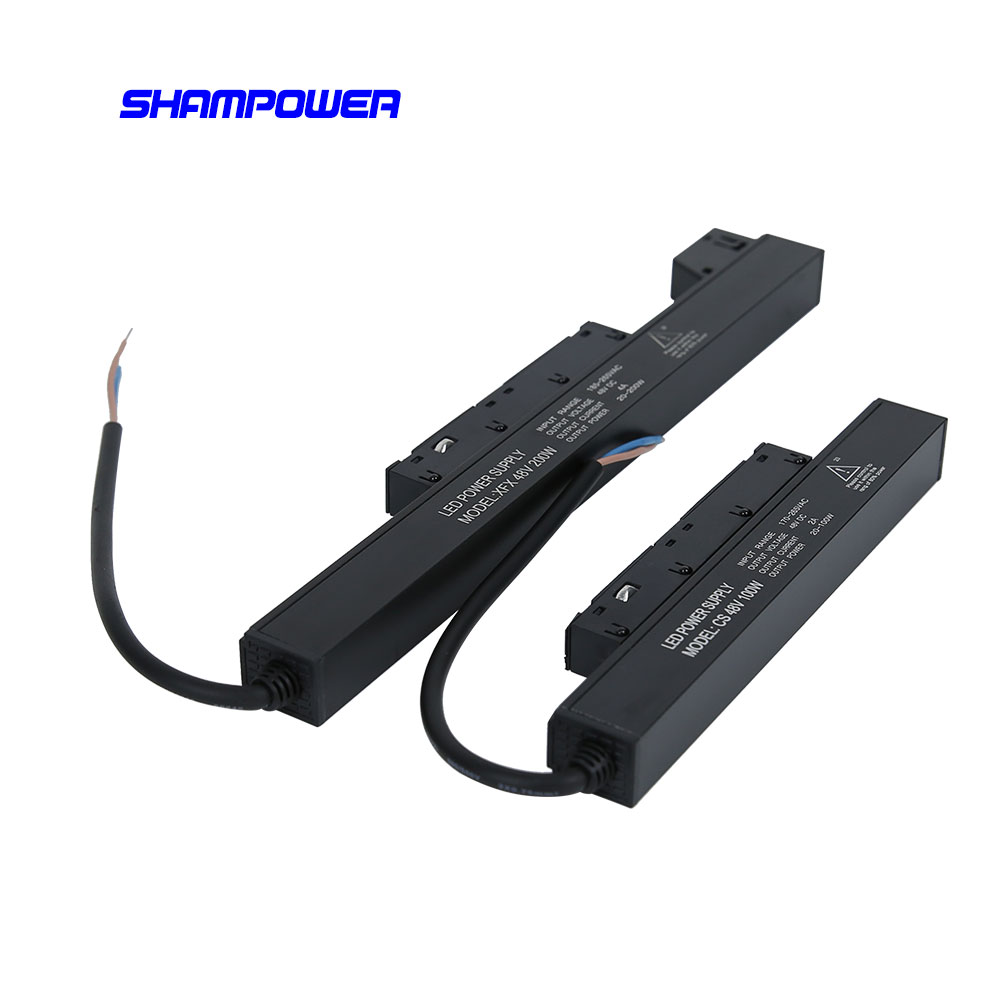

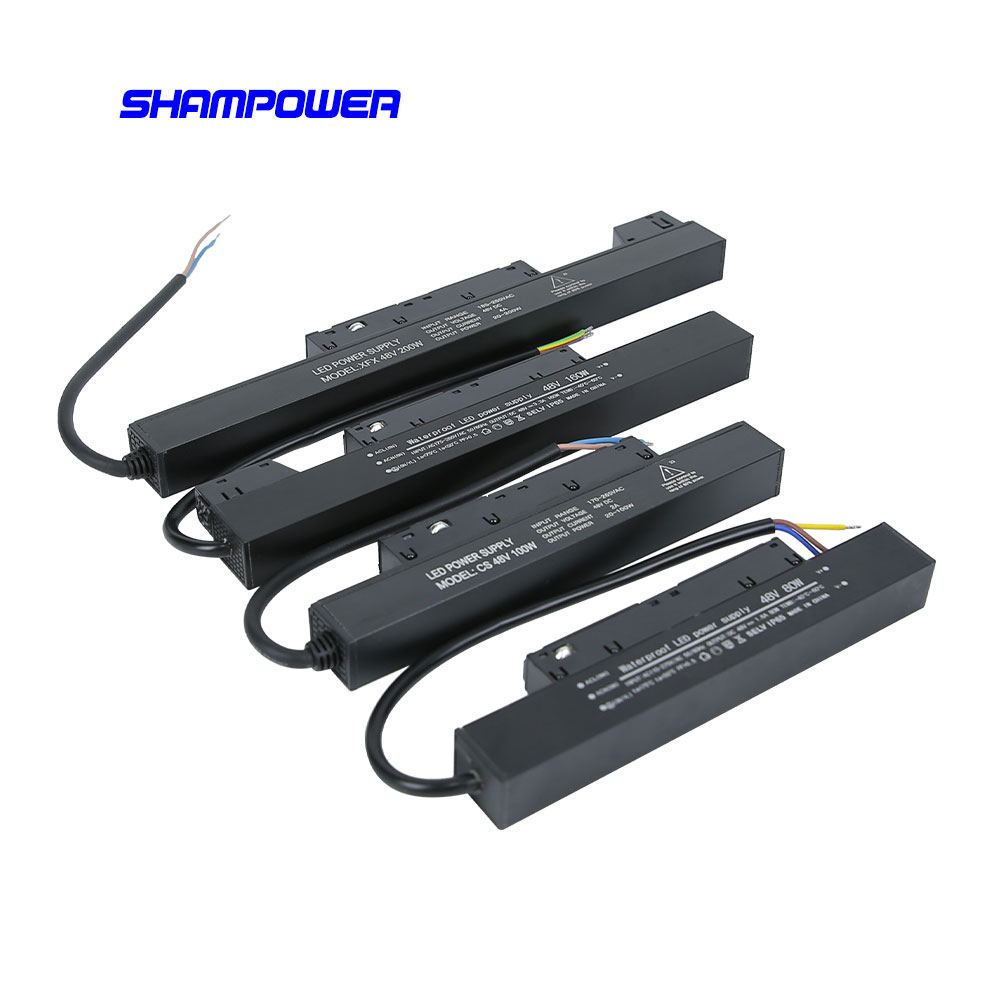

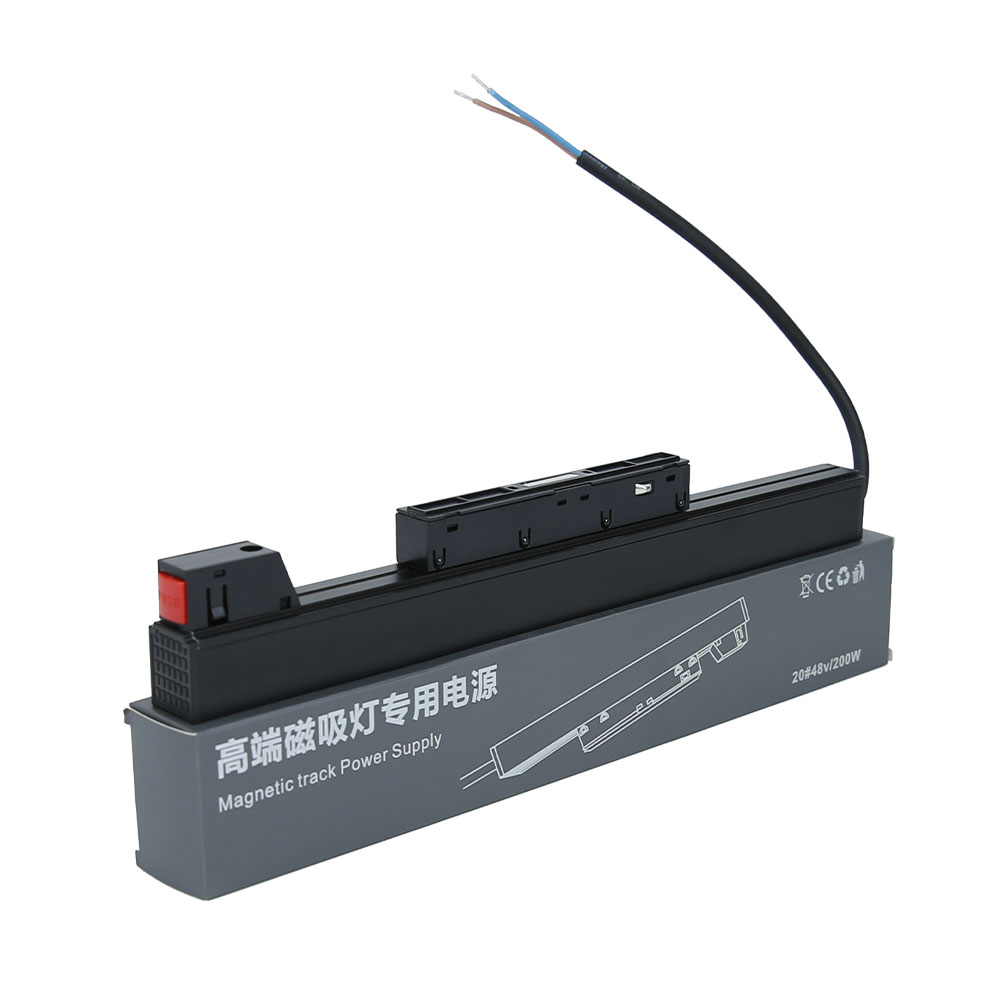

The Magnetic power supply is a single-output slim-type power supply with strong magnetic force. Adopting the full range of 180~264VAC input, the maximum current capacity of the power supply is 4.2A.

After the Magnetic power supply is installed on the track, it can move freely on the same track to adjust the position of the lamp without affecting the power supply of the lamp

In addition to the high efficiency of up to 90%, the 48V Magnetic power supply can operate from -30°C to 70°C working temperature under air convection without a fan. The Magnetic LED Driver has complete protection functions and is complied with international regulations such as CE / RoHS / FCC / ISO9001. The 48v Magnetic LED transformer serves as a high-performance power supply solution for various industrial applications.

Available Outputs:

• 80W, 100W, 160W, 200W



48V Magnetic Power Supply Features：

1) Slim low profile

2) Fanless design

3) Withstand 300VAC surge input for 5 seconds

4) Build-in active PFC function

5) -30°C to 70°C working temperature

6) Protections: Short circuit / Overload / Over Voltage / Over temperature

7) Operating altitude up to 5000 meters

8) LED indicator for power on

9) CE & RoHS & FCC & ISO9001 listed

10) 24-hour 100% full load burn-in test

11) Five years warranty



48V Magnetic Power Supply Specifications

DC Output



Ripple & Noise: 80MV

DC Adjustable Range: ±10% Rated Voltage

Voltage Tolerance: ±2.0%

Line Regulation: ±0.5%

Load Regulation: ±1%

Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC





AC Input







AC Voltage Range: 85-264VAC

Frequency Range: 47-63Hz

Efficiency: 90%

AC Current: 0.86/115V  0.4A / 230V

AC Inrush Current: 20A/115V   40A/230V

Leakage Current< 0.5mA / 240VAC



Protection



Over-load: 105%-150% hiccup mode, Auto-recovery

Over-voltage: 115%-135% Cut Off the Output, Auto-recovery

Over-temp.: Shut down O/P voltage, Auto-recovery



Environment





Working temp.: -10~ +60°C  (Refer to output load derating curve)

Working Humidity: 20 ~ 90% RH, non-condensing

Storage Temp.: -10~ +60°C

Storage Humidity: 10 ~ 95% RH



Safety



Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min

Safety standards: CE, RoHS, FCC, ISO9001,CCC



48V Magnetic Power Supply Applications:

1) LED chandeliers

2) LED spotlights

3) LED grille lights

4) LED Floodlights

5）Strip LED Magnetic Lamp
