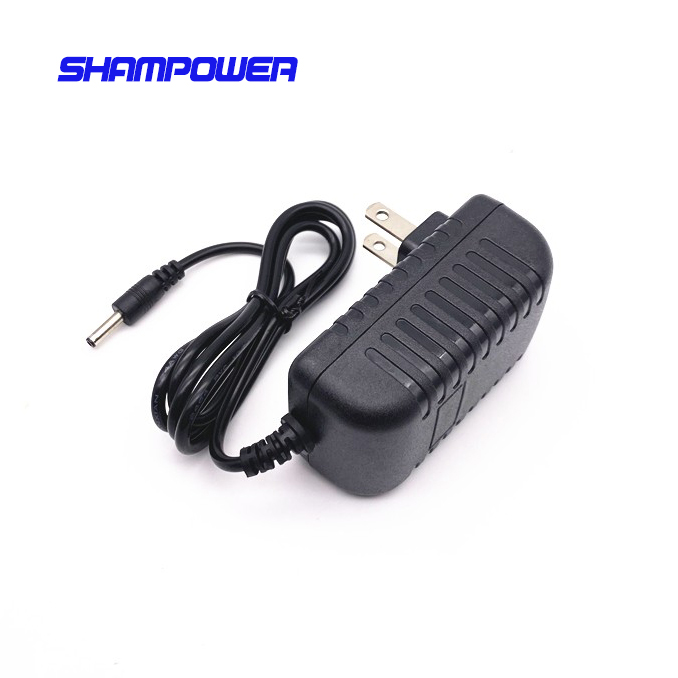

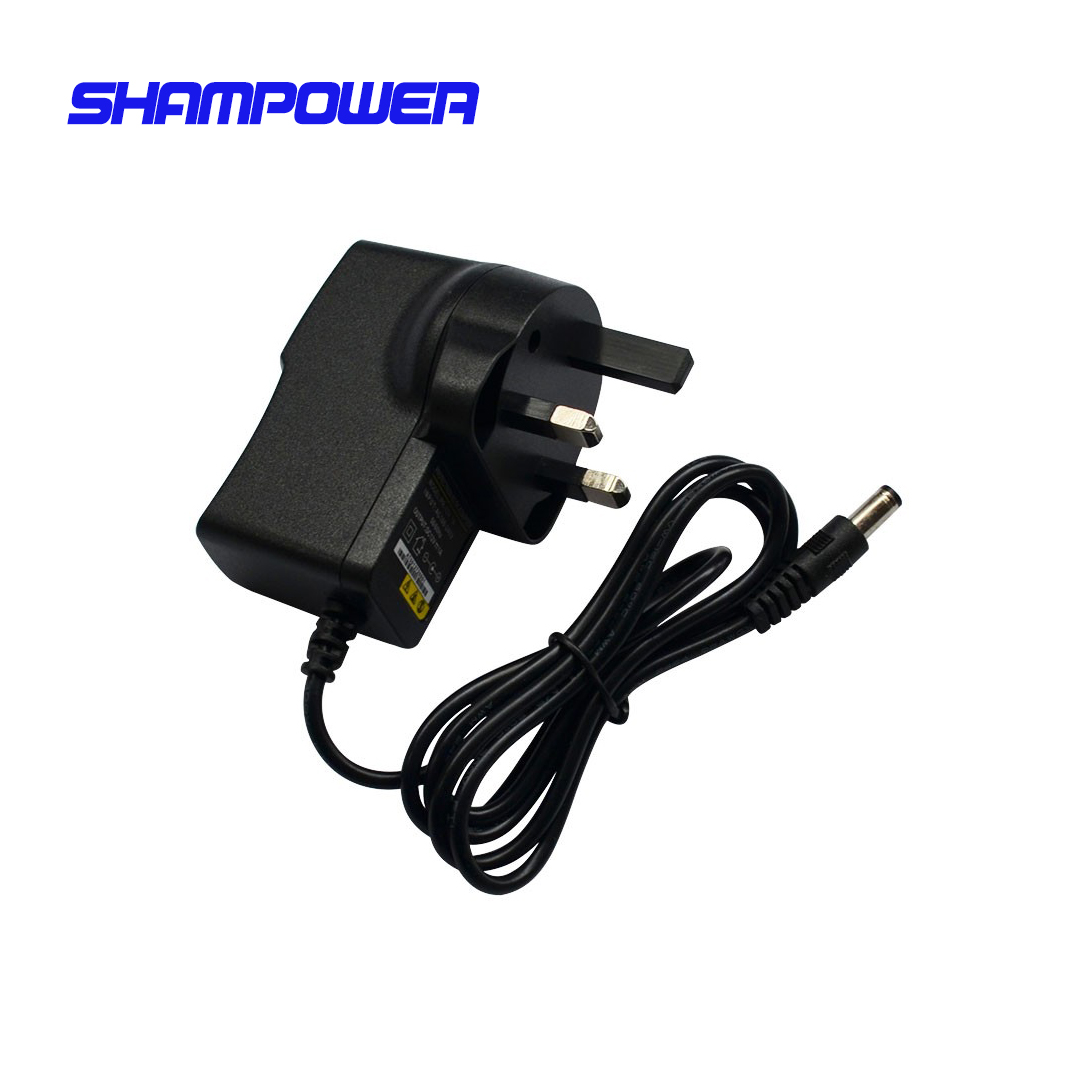

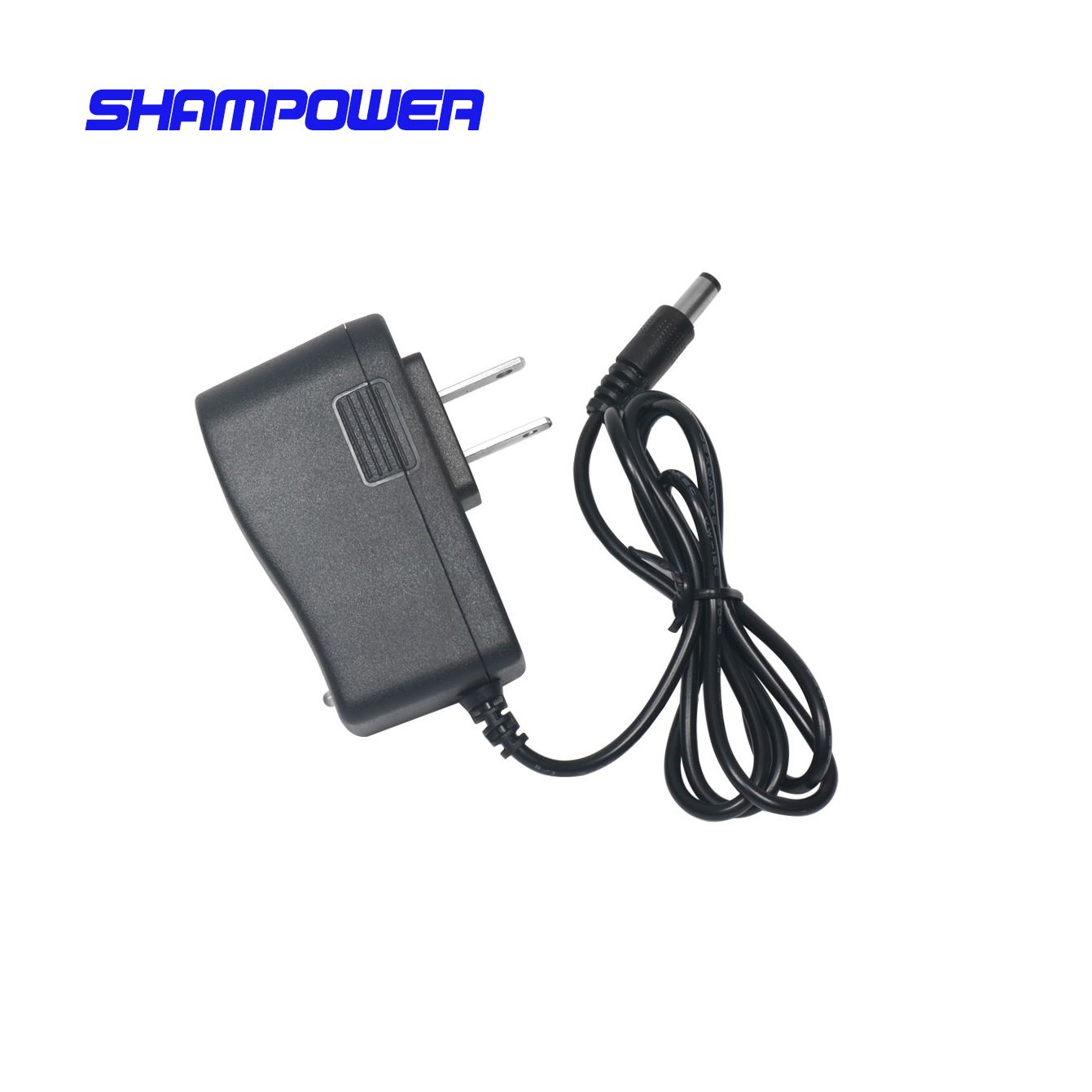

Wall-mounted Series Power Adapter

The Wall-mounted Series Power Adapter is a highly reliable single output adapter series. It adopts the input range from 85VAC to 264VAC. The Wall-mounted Series Power Adapter supplies different output voltages between 5VDC to 24VDC that can satisfy the various kinds of devices.

With an efficiency of up to 85% and an extremely low no-load power consumption below 0.3W. The supreme feature allows the Wall-mounted Series Power Adapter to save energy when it is either under the operating mode or the standby mode.

The entire Wall-mounted Series Power Adapter utilizes the 94V-0 flame-retardant plastic case, providing double insulation that effectively prevents electrical shock.

The Wall-mounted Series Power Adapter equipped with a 5.5mm x 2.1mm jack plug and a 1m long flexible power cord is suitable for CCTV security cameras, led strips, led string lights, wireless routers, ADSL cats, HUB, and other products.

Available Outputs Voltages: 5V / 6V / 9V / 12V / 18V / 24V / 36V / 48V

Wall-mounted Series Power Adapter Features:

1) 18 years in the power supply adapter industry

2) Customize plugs and output voltage of different national standards

3) 100% expertise in technical support

4) Extremely low leakage current

5) low no-load power consumption < 0.3W

6) -30°C to 70°C working temperature

7) Fully enclosed plastic case

8) LED indicator for power on

9) Protection: Short circuit, overload, overvoltage, overcurrent and leakage

10) CE & RoHS & FCC & CCC & ISO9001 listed

11) ODM & OEM supported and Fast delivery

12) Various dc plug quick adapter accessories are available

13) 3 years warranty

Wall-mounted Series Power Adapter Specifications：

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: CE, RoHS, FCC, ISO9001,CCC

Wall-mounted Series Power Adapter Applications:

1) Consumer electronic devices

2) Telecommunication devices

3) Office facilities

4) Industrial equipment

5) LED strip lighting
