24V AD Series UPS Power Supply

POWER SUPPLY > AD Series UPS Power Supply > 24V AD Series UPS Power Supply

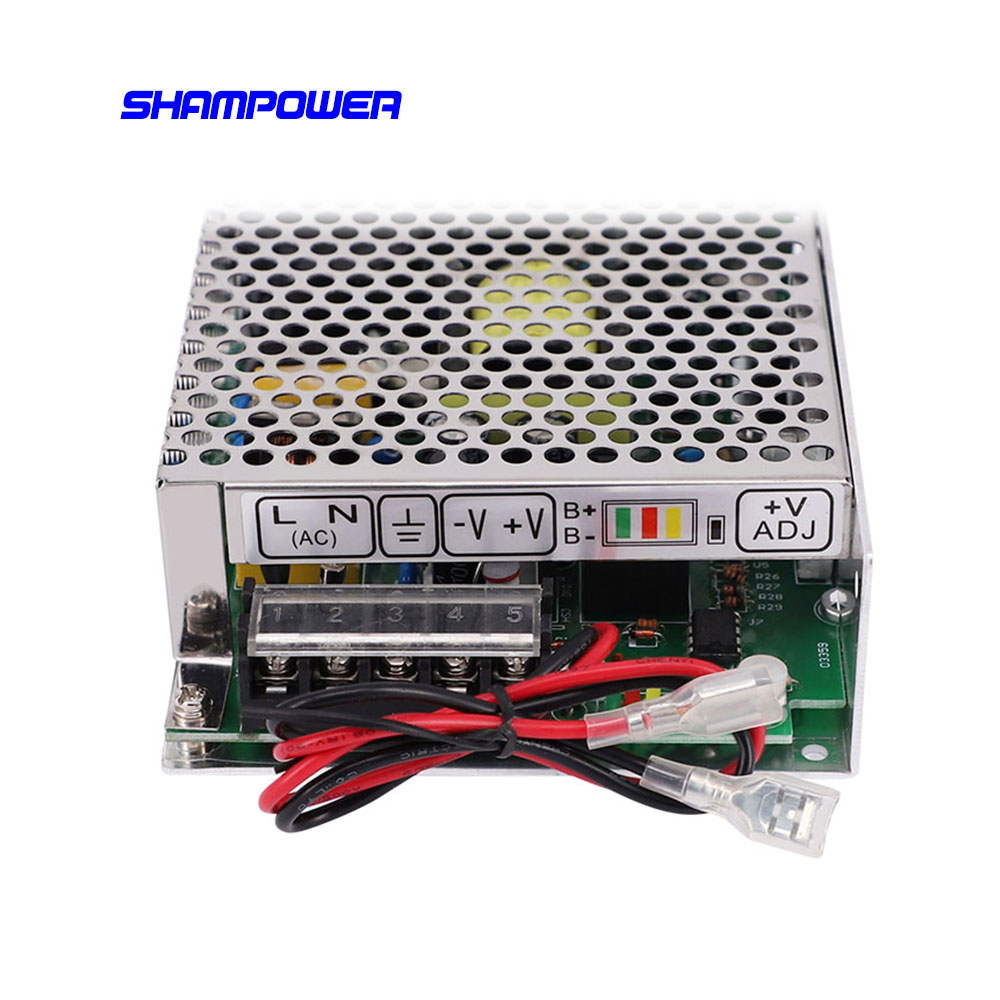

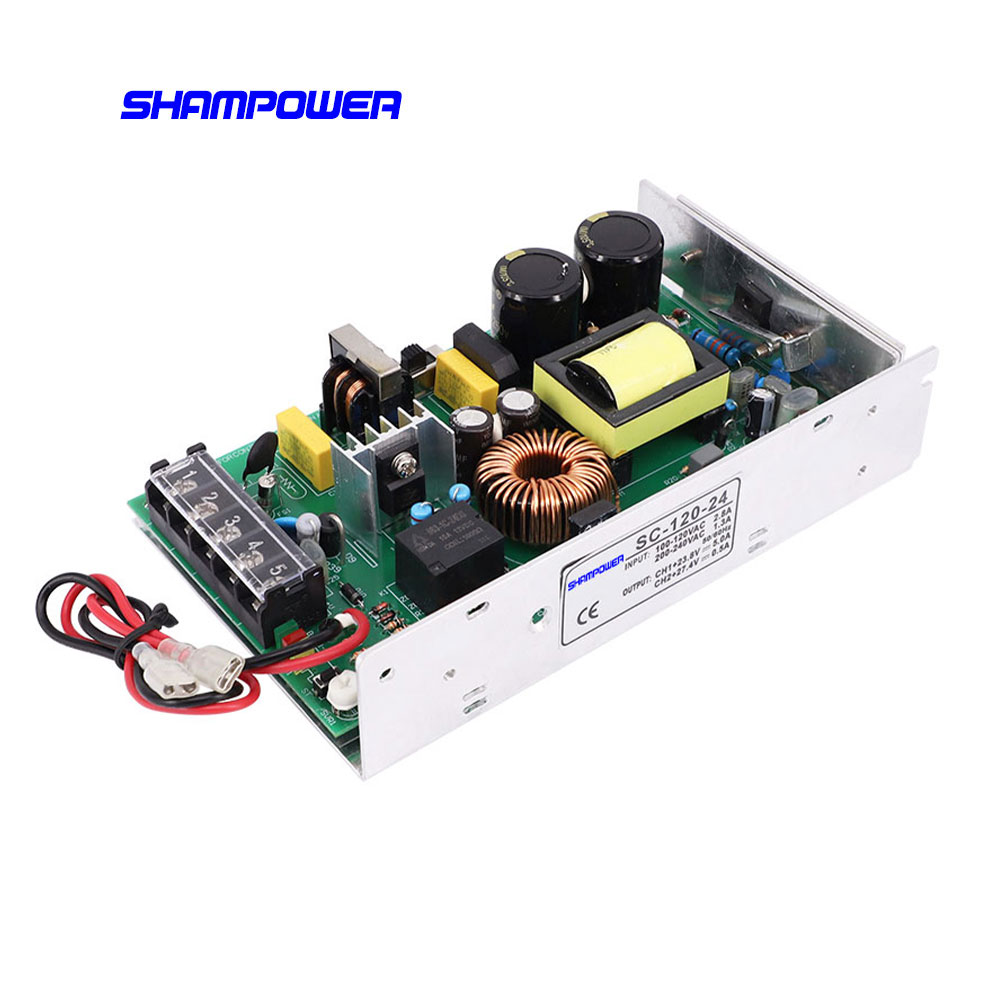

24V AD Series UPS Power Supply

The Shampower 24V AD Series UPS Power Supply is the AC / DC security power supply, allowing the universal input range between 90VAC to 240VAC. In addition to the primary output, there is a charger output, with a smaller rated current, providing the backup application the security access systems normally need.

The Shampower 24V AD Series UPS Transformer delivers efficiency of up to 86%, it can operate with air convection under -20℃~ 70℃. The 24V AD Series UPS Power Supply is designed with thorough alarm features, including AC OK and battery low signaling. Robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signaled by flashing red LED and with auto-recovery once output short or overload is removed. The power input and power output are enclosed in one heavy-duty, easy-to-install enclosure.

As a result, a Shampower 24V AD Series UPS Power Supply can replace several separate individual power sources.

Available Outputs:

35W, 60W, 120W, 180W, 350W, 600W

24V AD Series UPS Power Supply Features:

1) AC power failure supervision relay

2) Main power switch to turn on/off power to outputs

3) Battery failure supervision relay

4) Selectable delay timer (5 sec., 10 sec,) for AC failure supervision relay via DIP switch

5) Board designed with overload and short-circuit protection, including automatic shutdown and LED overload indicator

6) Over-current fuse-protected AC input

7) Support external 24V backup battery charger

8) Automatically switch to backup battery if AC fails

9) Individual AC input and DC output LED status indicators

10) Alarm signal for AC OK and Battery low

11) Battery low protection / Battery reverse polarity protection by fuse

12) Universal AC input / Full range

24V AD Series UPS Power Supply Specifications:

1) Input Voltage: 110~240VAC

2) Output Voltage: 24VDC selectable via DIP switch

3) Adjustable Output: 22~26 @ 24VDC setting via VR switch

4) No. of Output: 1 channel

5) Supply Current: 1.5A@24VDC / 2.5A@24VDC / 5A@24VDC

7.5A@24VDC / 15A@24VDC / 25A@24VDC

6) AC Input Fuse Rating: 3.15A ( glass fuse )

7) LED Status Indicator: AC input ( Green ), DC Output ( Red )

8) AC-Fail Relay Delay Timer: Selectable @ 5sec or 10sec via DIP switch

Dimensions & Packing:

24V-1.5A: 4.4" x 3.6" x 1.4", 0.25KG, 120 PCS/CTN

24V-2.5A: 5.1" x 3.9" x 1.5", 0.31KG, 65 PCS/CTN

24V-5A: 6.3" x 3.6" x 1.5", 0.35KG, 65 PCS/CTN

24V-7.5A: 7.8" x 3.9" x 1.5", 0.4KG, 50 PCS/CTN

24V-15A: 8.5" x 4.4" x 2.0", 0.6KG, 36 PCS/CTN

24V-25A: 9.5" x 4.8" x 2.5", 1.1KG, 21 PCS/CTN

24V AD Series UPS Power Supply Applications:

1) Security system

2) Emergency lighting system

3) Alarm system

4) UPS system

5) Central monitoring system

6) Access system
