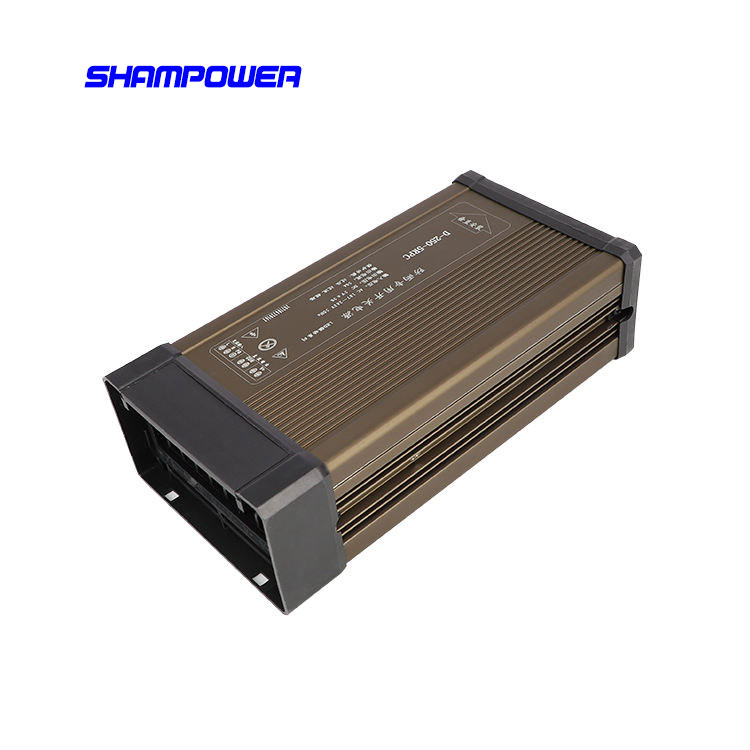

5V IP65 RPS Rainproof Power Supply

POWER SUPPLY > IP65 RPS Rainproof Power Supply > 5V IP65 RPS Rainproof Power Supply

5V IP65 RPS Rainproof Power Supply

5V RPS rainproof LED power supply is converted from ac 110V / 220V input to dc 5v output.

5V RPS rainproof LED Transformer contains 200W, 350W, 400W. Other specifications can be customized.

SHAMPOWER RPS rainproof LED driver has passed CE, RoHS, BIS and FCC certification.

5VDC RPS rainproof power supply is suitable for luminous characters, blister characters, displays, etc.

Available Outputs:

• 200W, 350W, 400W

5V RPS Rainproof LED Power Supply Features:

1) Available in wattage from 200W to 400W

2) Available in silver & gold finishes

3) Sturdy aluminium construction

4) IP65 waterproof performance

5) High-density double-side PCB with SMT process

6) More dust-proof, moisture-proof, salt proof of three anti-paint-soaked PCB

7) Superior heat dissipation with a built-in fan

8) BIS & CE & RoHS & FCC listed

9) ODM & OEM supported and Fast delivery

10) Three years warranty

5V RPS Rainproof LED Power Supply Specifications：

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: CE, RoHS, FCC, ISO9001,CCC

5V RPS Rainproof LED Power Supply Applications:

1) Industrial automation machinery

2) Industrial control system

3) Mechanical and electrical equipment

4) Electronic instruments, equipment or apparatus

5) Household appliances

6) LED display application

7) Power Source Equipment for PoE ( 55V model )
