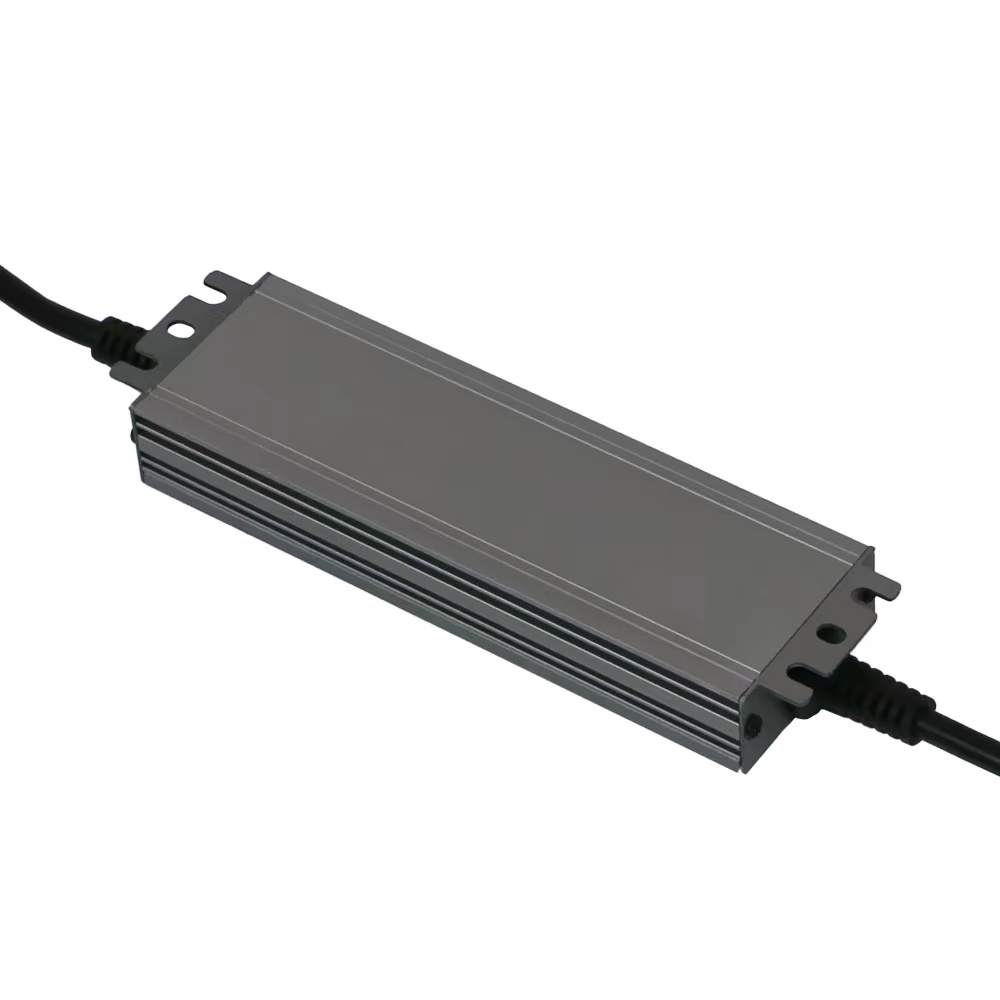

24V TWP Series WaterProof Power Supply

These CE / RoHS / FCC recognized 24V Constant Voltage TWP Series LED Waterproof Power Supplies have an IP67 rating for wet or dry locations and can supply up to 25 amps of 24-volt dc power or 600 watts. A universal ac input of 100-240VAC makes this TWP Series 24V LED Waterproof valuable transformer in home and industrial applications. Input and output connections are made using 18AWG bare wire leads.

These IP67 ultrathin TWP Series 24V LED Waterproof Drivers have built-in short circuit, overload, and over-voltage protection and adhere to CE safety standards. Use these small 24V TWP Series LED Waterproof transformers for indoor or outdoor 24VDC LED Lighting Projects.

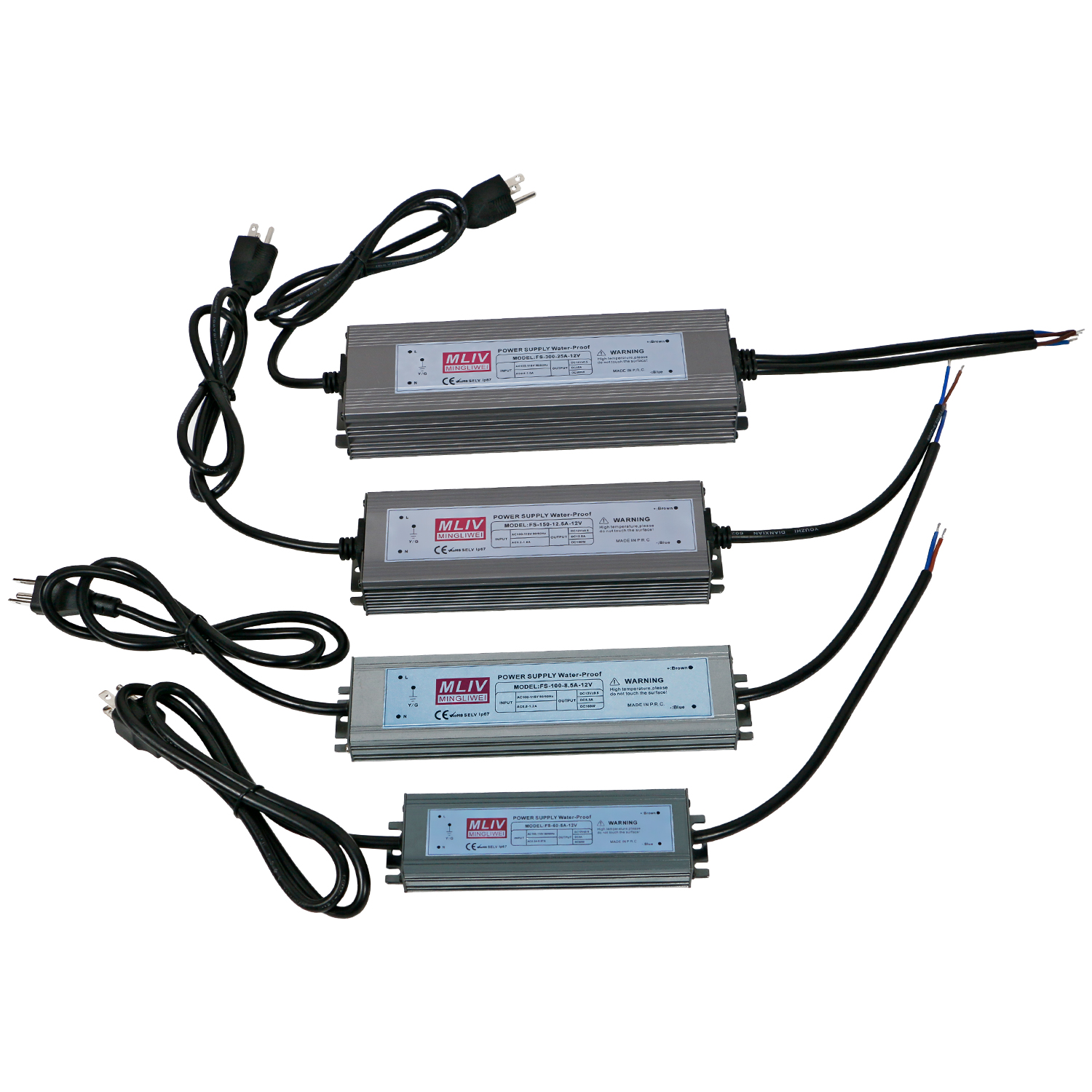

Available Wattage:

• 10W to 600W

24V TWP Series IP67 Waterproof Power Supply Features：

1) Charcoal black high-quality anodized aluminum construction

2) High-density double-sided fiberglass PCB with SMT process

3) Thickness within 4cm

4) Smaller size with a bigger power ( 10W to 600W )

5) IP67 waterproof performance

6) Superior heat dissipation with a fanless silent design

7) Short circuit, overload, overvoltage, overcurrent, and leakage protection

8) CE & RoHS & FCC & ISO9001 listed

9) ODM & OEM supported and fast delivery

10) Three years warranty

24V TWP Series IP67 Waterproof Power Supply Specifications:

DC Output	DC Voltage: 24V
	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time:200ms, 50ms, 20ms/230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency:90%
	AC Current: 0.86/115V 0.4A/230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA /240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp. : Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity:20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
	Withstand Voltage: I/P-O/P:3KVAC; I/P-FG:1.5KVAC; O/P-FG:0.5KVAC
	Safety standards: CE, RoHS, FCC, ISO9001

24V TWP Series IP67 Waterproof Power Supply Applications:

1) LED luminous characters

2) LED interior lighting

3) LED decorative lighting

4) LED advertising lighting

5) LED street lighting

6) LED architectural lighting

7) LED patio lights

8) LED floodlights

9) LED strip lighting

10) LED stage lighting

11) LED flash

12) LED Greenhouse Lighting

13) LED wall washer

14) LED Horticultural Lighting

15) Stadium lighting

16) LED fishing light

17) Port lighting

18) LED overhead lighting

19) LED parking lighting
