Ultrathin LRS Power Supply

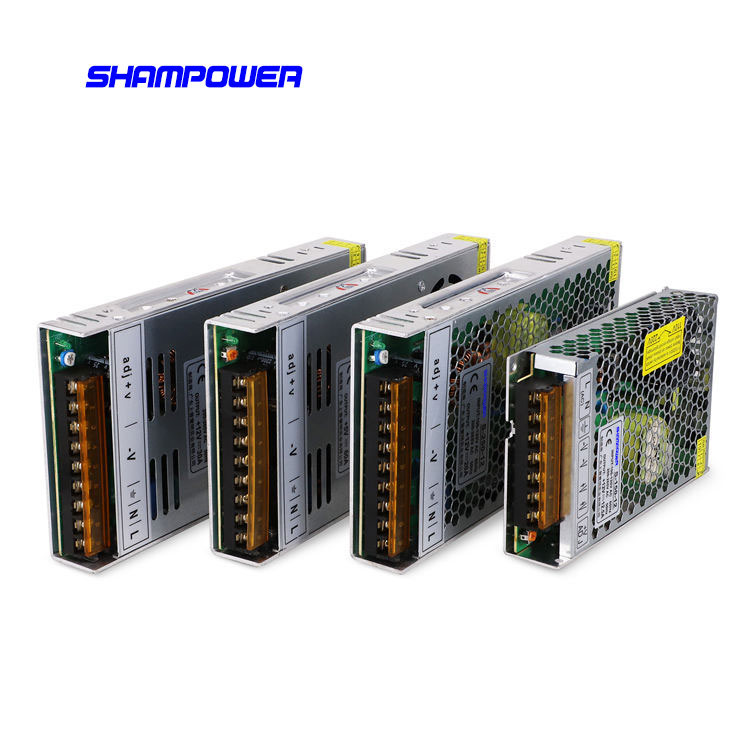

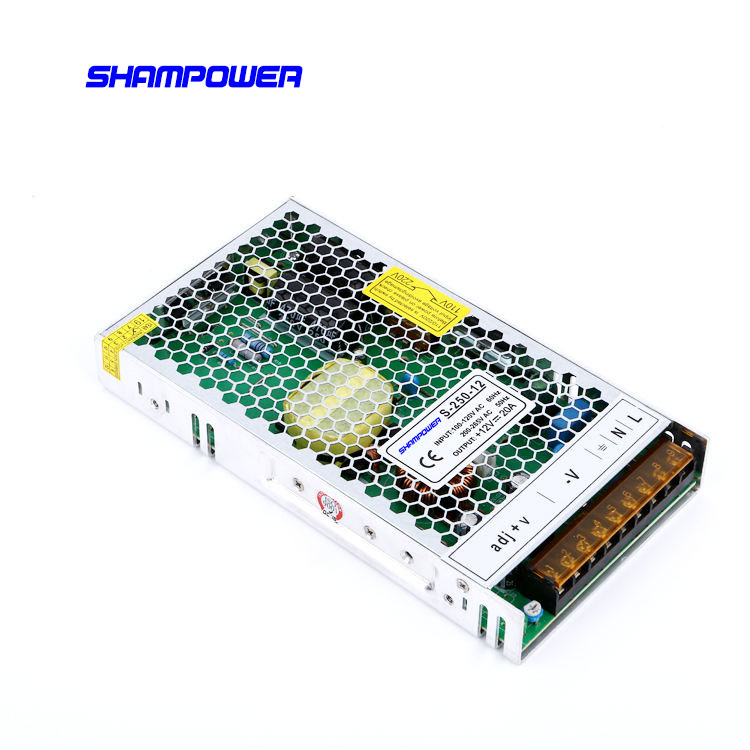

Ultrathin LRS Series Switching Power Supply is a single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC ( selectable by switch), the entire series provides an output voltage line of 5V, 12V, and 24V. Other specifications can be customized.

In addition to the high efficiency of up to 90%, the design of the metallic mesh case enhances the heat dissipation of the whole Series Ultrathin LRS Switching Power Supply operates from -30℃ to 70℃ under air convection without a fan. Delivering an extremely low no-load power consumption ( less than 0.5W ), it allows the end system to easily meet the worldwide energy requirement.

Ultrathin LRS Series Switching Power Supply has complete protection functions and is complied with international safety regulations such as CE / RoHS / FCC / ISO9001.

Ultrathin LRS Series Switching Power Supply serves as a high-price-to-performance power supply solution for various industrial applications.

Available Outputs:

1) 5V

2) 12V

3) 24V

Ultrathin LRS Series Switching Power Supply Features:

1) Universal AC input range selectable by switch

3) Withstand 300VAC surge input for 5 seconds

3) No load power consumption < 0.5W

4) Miniature size and 1U low profile

5) High operating temperature up to 70℃

6) 24-hour 100% full load burn-in test

7) Cooling by free air convection

8) Protections: Short circuit/overload/overvoltage/overcurrent/leakage

9) All using 105°C long life electrolytic capacitors

10) LED indicator for power on

11) CE & RoHS & FCC & ISO9001 listed

12) ODM & OEM supported and Fast delivery

13) High efficiency, long life, and high reliability

14) Three years warranty

Ultrathin LRS Series Switching Power Supply Specifications：

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: CE, RoHS, FCC, ISO9001, CCC

Ultrathin LRS Series Switching Power Supply Applications:

1) Industrial automation machinery

2) Industrial control system

3) Mechanical and electrical equipment

4) Electronic instruments, equipment, or apparatus

5) Household appliances

6) LED display application
