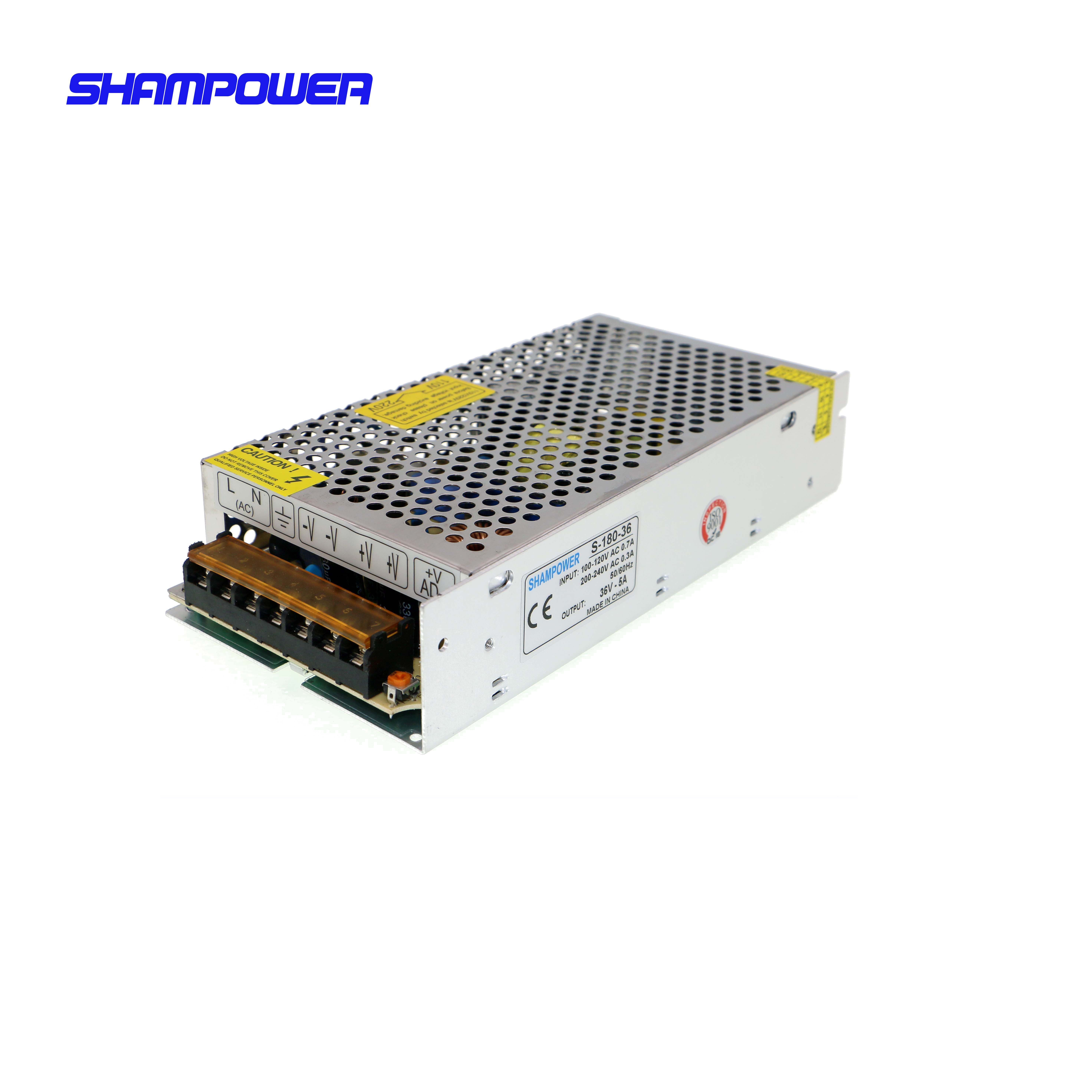

36V Switching Power Supply

36VDC Switching Power Supply is converted from ac 110V / 220V input to dc 36V output.
36V AC to DC transformer contains 2A, 5A, 10A, etc. Other specifications can be customized.
36VDC led power supply is suitable for light bars, LED strips, displays, etc. It is suggested to install it in a dry and airy environment.

Available Outputs:

• 2A, 5A, 10A

36V Switching Power Supply Features:

1) Available in wattage 72W to 360W

2) 85% high efficiency

3) Universal AC 110V / 220V input range selectable by a switch

4) 24-hour 100% full load burn-in test

5) Short circuit, overload, overvoltage, overcurrent, and leakage protection

6) 10 years of trouble-free working time

7) CE & RoHS & FCC &CCC listed

8) ODM & OEM supported and Fast delivery

36V Switching Power Supply Specifications：

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: CE, RoHS, FCC, ISO9001, CCC

For more information, please contact us
