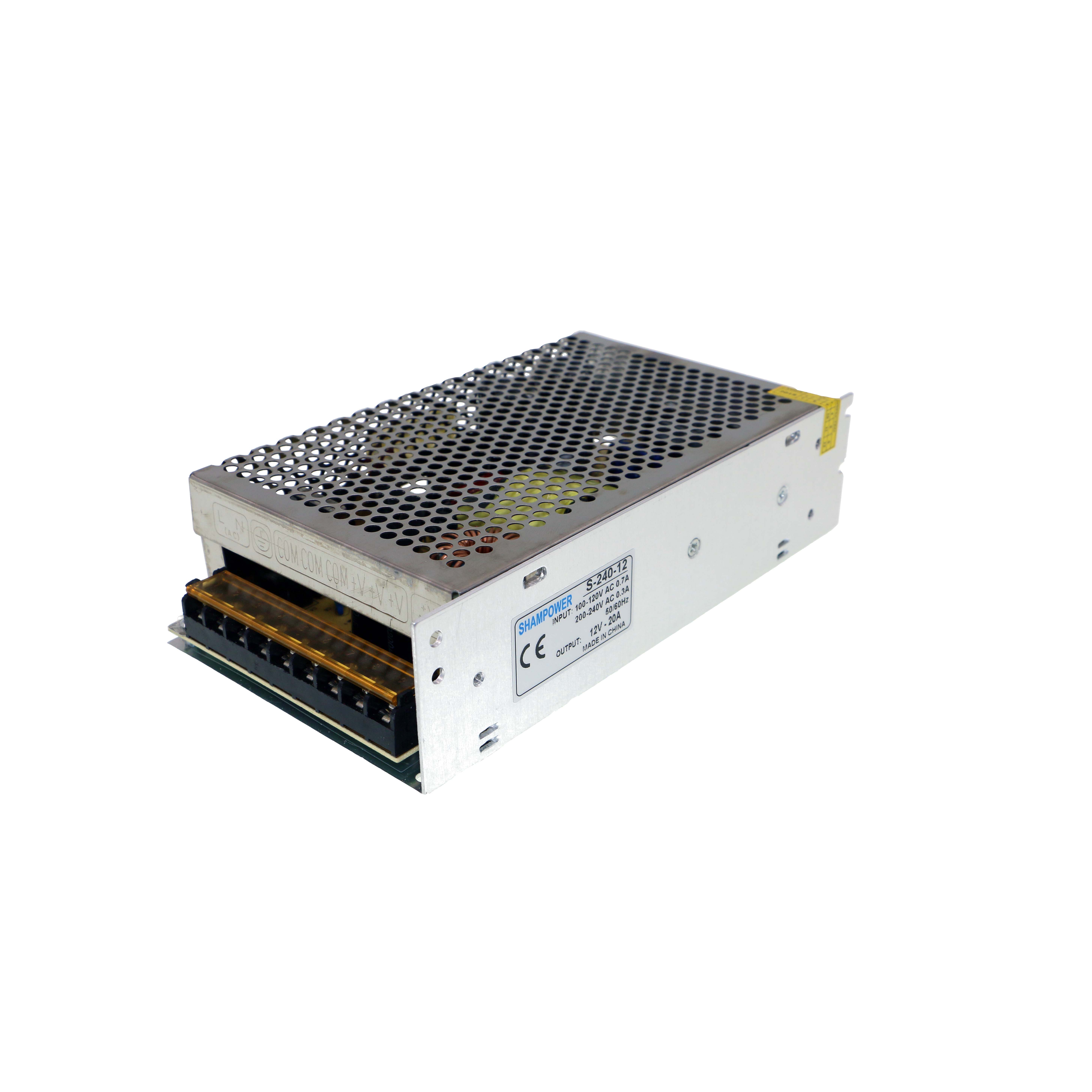

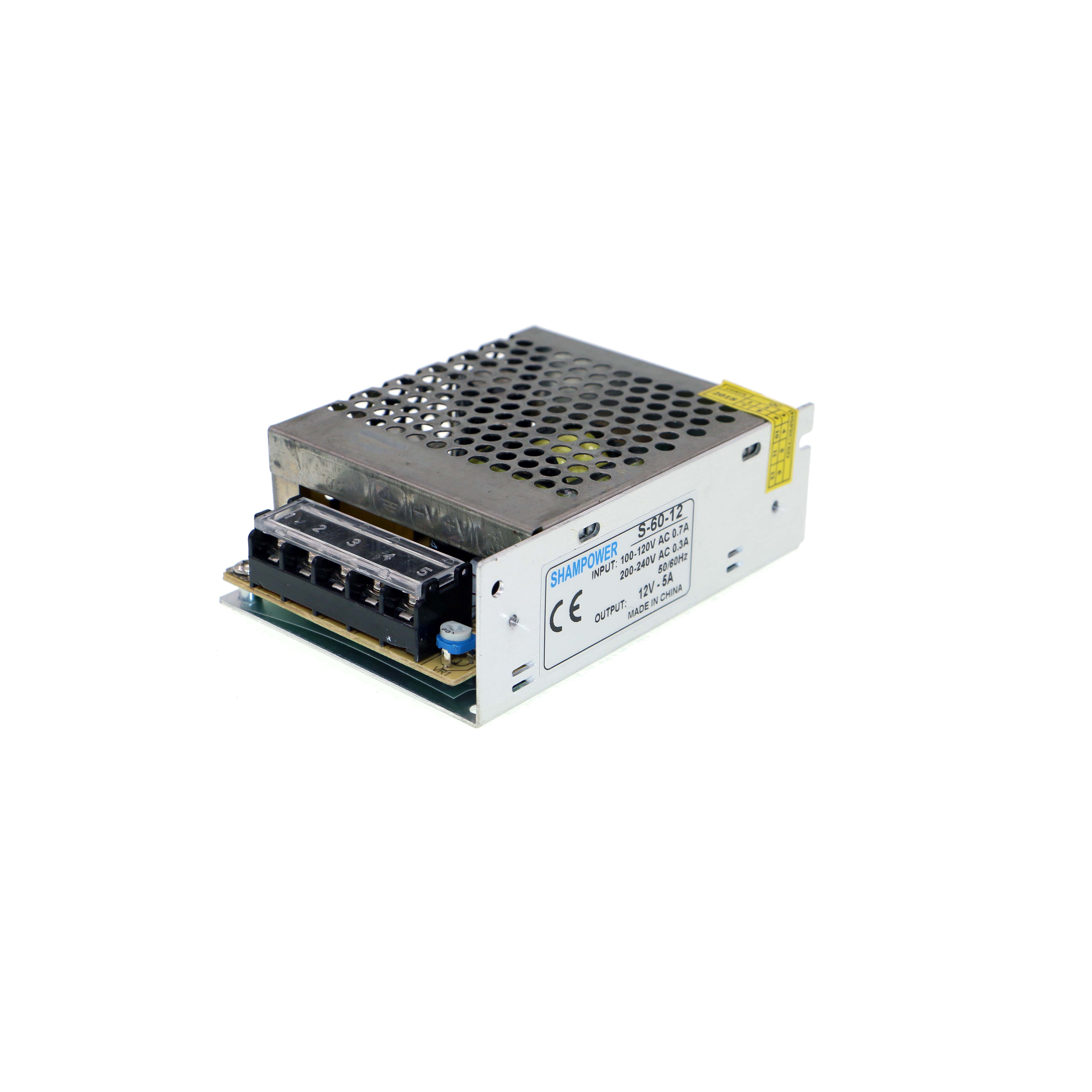

12V Switching Power Supply

POWER SUPPLY > 12V Switching Power Supply

12VDC Switching Power Supply is converted from ac 110V / 220V input to dc 12V output.

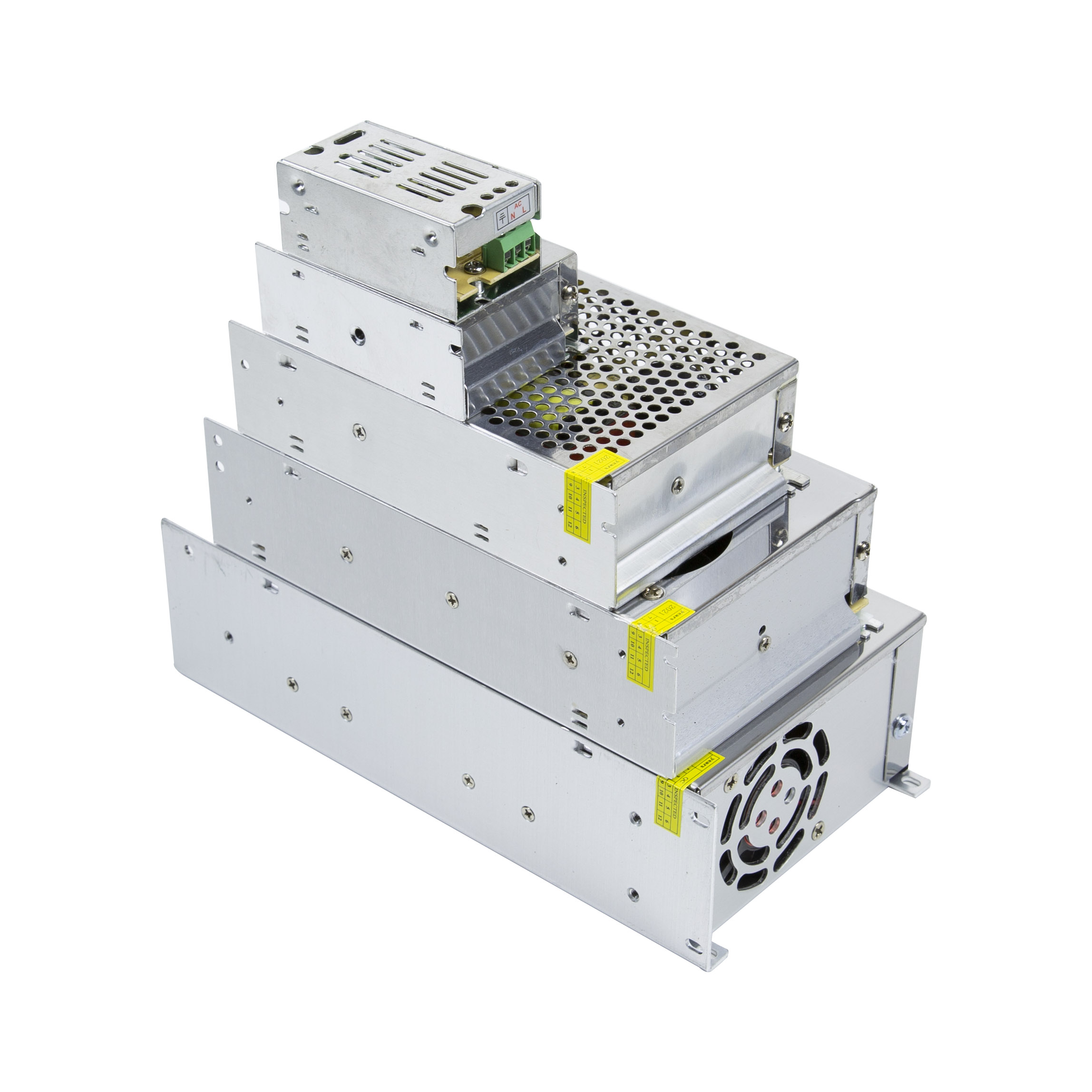

12V Switching Power Supply contains 1A, 2A, 3A, 5A, 8.5A, 10A, 15A, 20A, 25A, 30A, 33A, 40A, 50A, 60A, etc. Other specifications can be customized.

12VDC transformer is suitable for led strip lights, security cameras, etc. It is suggested to install it in a dry and airy environment.

Available Outputs:

• 1A, 2A, 3A, 5A, 8.5A, 10A, 15A, 20A, 25A, 30A, 33A, 40A, 50A, 60A

12V Switching Power Supply Features:

1) Available in wattage 12W to 720W

2) 85% high efficiency

3) Universal AC 110V / 220V input range selectable by a switch

4) 24-hour 100% full load burn-in test

5) Short circuit, overload, overvoltage, overcurrent and leakage protection

6) 10 years of trouble-free working time

7) CE & RoHS & FCC & CCC listed

8) ODM & OEM supported and Fast delivery

12V Switching Power Supply Specifications：

DC Output	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup, Rise Time, Hold Up Time: 200ms, 50ms, 20ms / 230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency: 90%
	AC Current: 0.86/115V 0.4A / 230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA / 240VAC
Protection	Over-load: 105%-150% hiccup mode, Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output, Auto-recovery
	Over-temp.: Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60°C (Refer to output load derating curve)
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60°C
	Storage Humidity: 10 ~ 95% RH
Safety	Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
Safety	Safety standards: CE, RoHS, FCC, ISO9001,CCC

For more information, please contact us.
